As mentioned in the previous post, I already had plans to replace the 12 V battery of my car. The current one was still the one from the factory, and was stamped with date code week 35 of 2017. Given that the normal lifetime of a 12 V battery is somewhere between three to eight years, it is already on the longer side.

Battery failure is not binary. They degrade in capacity until a point they are not capable of being usable. Regular combustion vehicles draw a lot of current when the start motor is engaged. Under unfavorable circumstances, a cold and undercharged battery might drop below a usable charge level, which can lead to troubles starting the vehicle.

Electric vehicles do not have a start engine. Instead, they have a high-voltage contactor, which needs to be energized by the 12 V battery to be operable. Once toggled, you can ‘start’ the car. When the 12 V battery voltage drops, it gets charged by the high-voltage battery. But even if the high-voltage battery is full, it cannot operate if the 12 V battery is empty.

The replacement

My e-Golf was equipped from the factory with a 59 Ah EFB 12 V battery. EFB is the type of battery, and stands for ‘Enhanced Flooded Battery’. The car is also equipped with battery monitoring equipment, to measure power draw and estimate charge levels.

The factory battery is size H5, which is about 242 mm long. The mount itself has room for a H6, which is about 278 mm long. I found a replacement battery of 72 Ah in capacity of size H6, produced by Exide. The type of the battery was AGM, which stands for ‘Absorbent Glass Mat’.

AGM is a battery type, offering better lifetime, lower self-discharge rates and better resistance to cold temperatures. I do not see any reasons not to upgrade from EFB to AGM. The car is not used or charged daily, so it should be an even better fit. There is some discussion if this is possible, but the e-Golf produced for the american market uses a battery with part number 000 915 105 CC, which is an AGM type battery.

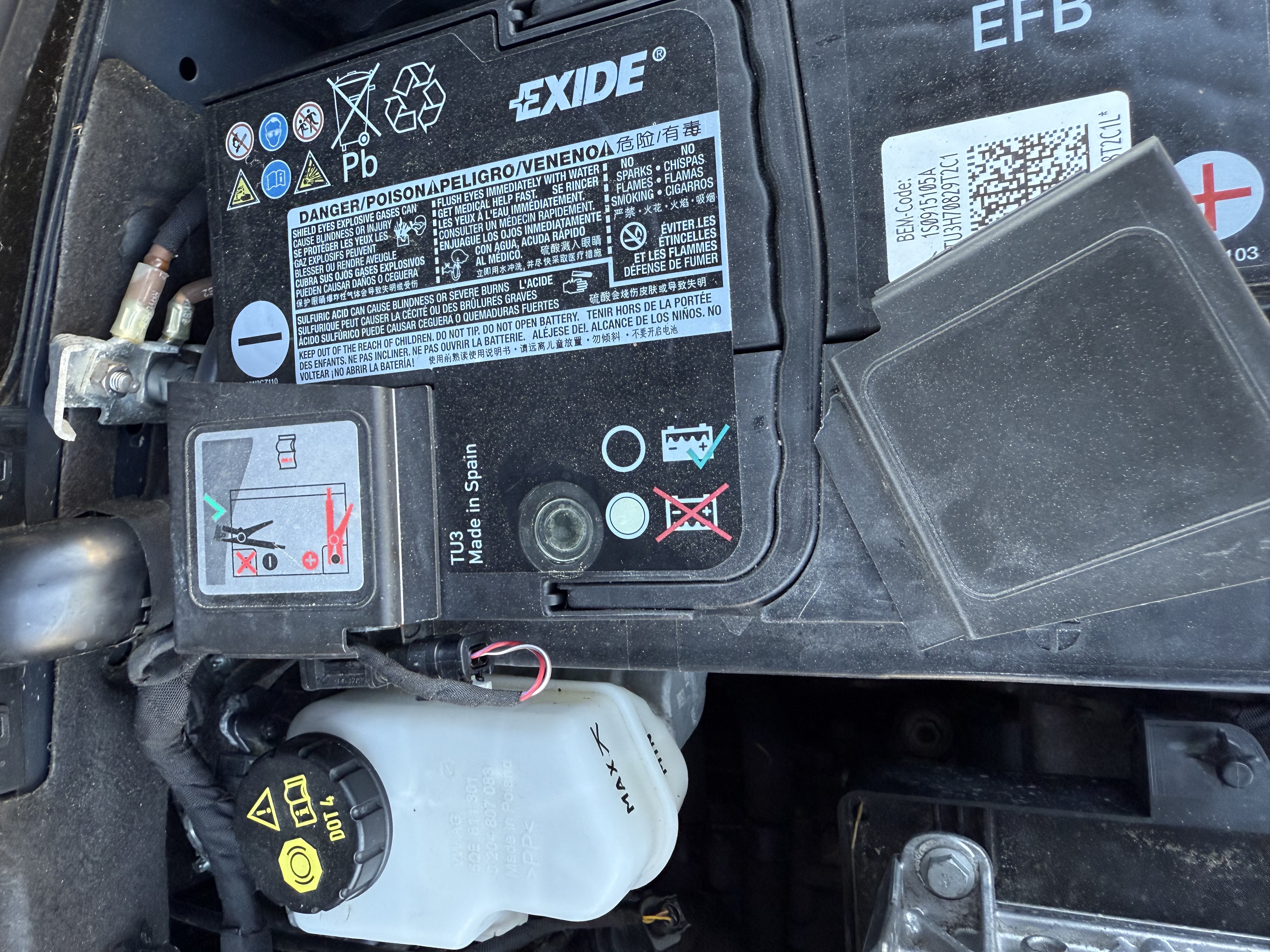

The old battery.
The old battery.

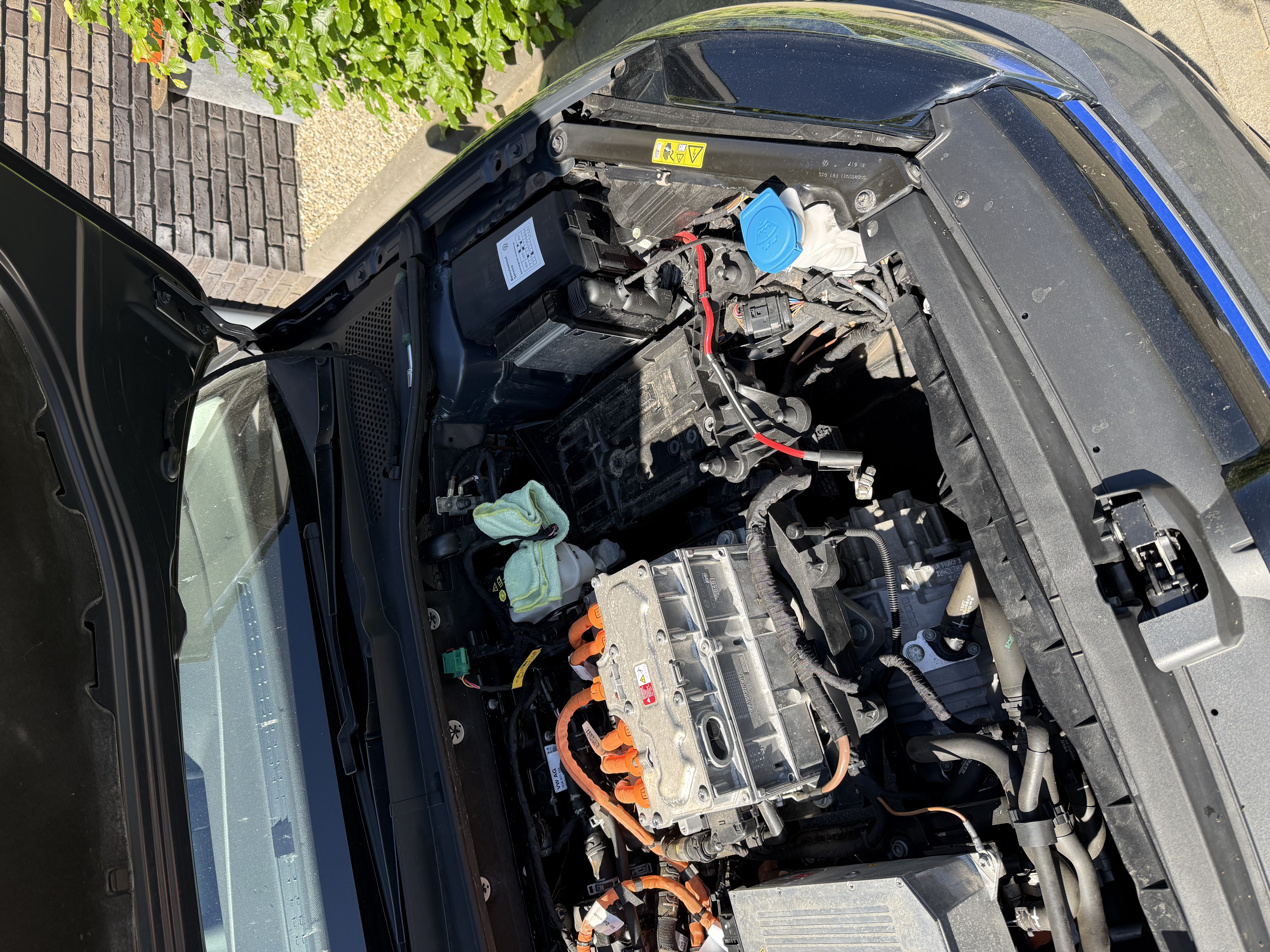

The old battery removed.
The old battery removed.

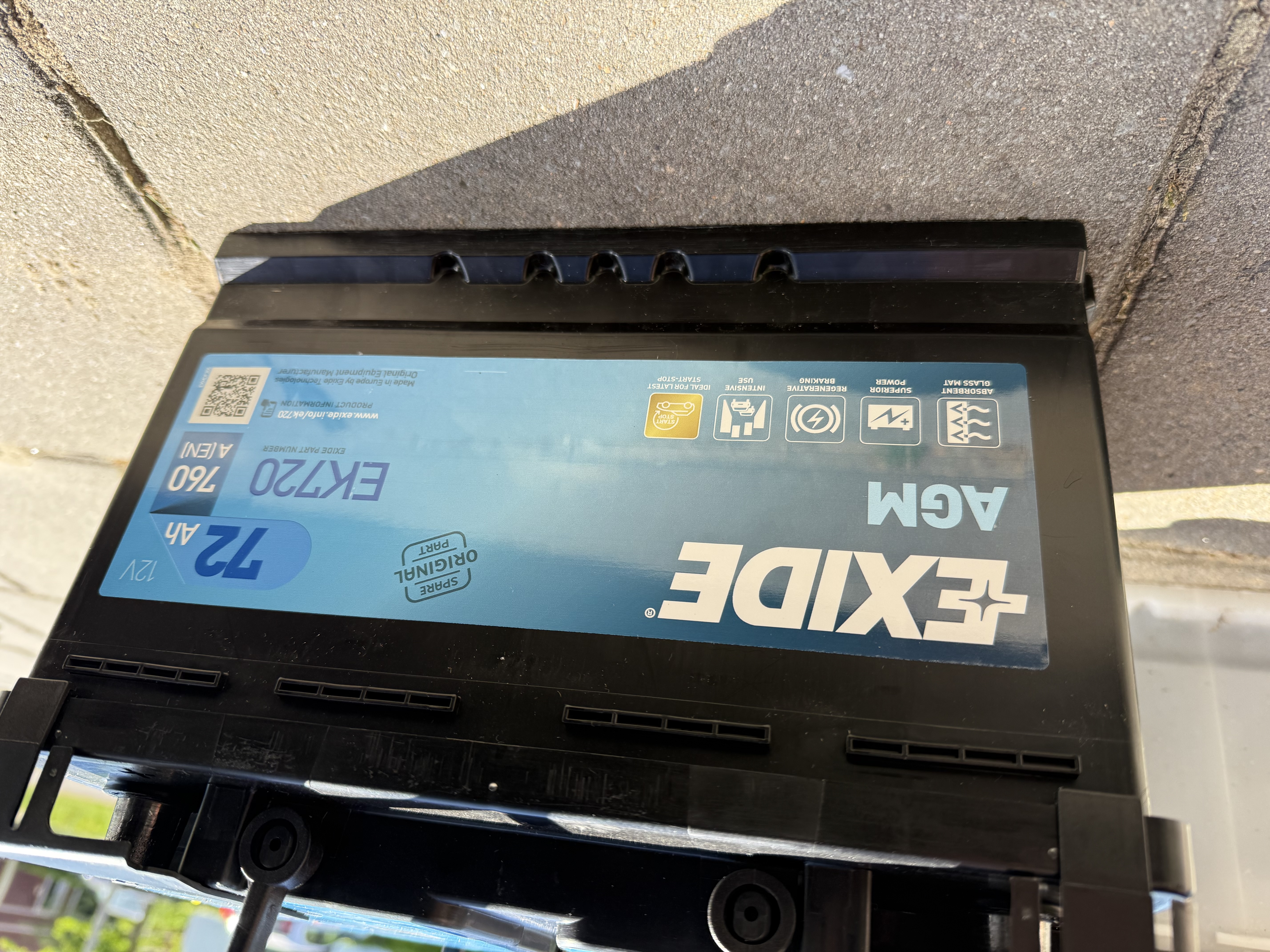

New battery installed.
New battery installed.
New battery installed.
New battery installed.

The old battery weighed about 19 kilograms. The new one weighs about 21 kilograms and has approximately 22% more capacity. While at it, I also installed a battery protection cover (part number 5Q0 915 411 H) that I bought second-hand from a Passat. This cover is not installed on the e-Golf, but is installed on the combustion cars to protect it from engine heat. I see it as a layer of protection, and it does not harm if it does not work.

Coding the new battery

The new battery needs to be programmed. You need to tell the gateway module (J533, or block 19) about its size and type, so it can properly estimate the state of charge and apply the right charge characteristics.

You can code the new battery using VCDS.

  1. Go to module 19-Gateway.
  2. Go to adaptions.
  3. Change IDE03256-MAS06105-Battery adaptation-Rated battery capacity to the new battery size.
  4. Change IDE03256-MAS06106-Battery adaptation-Battery technology to the type of the battery. Apparently, ‘fleece’ is the option for AGM type batteries, not ‘binary-AGM’. See here for more information.
  5. There are two adaptions left for the manufacturer and serial number. They are not required, and did not even match with the original battery installed in my car. I did change the value of IDE03256-MAS06107-Battery adaptation-Battery manufacturer to TU3, which according to this equals Exide.
