Since I also want to retrofit the pedestrian warning system (PWS), I also want to have that button retrofitted. This button allows you to turn the system on or off. I probably will not use it much, but I want it to have as original as possible.

This means that I need the buttons with mode select, the speaker button and the ESC/ASR button. This button does not exist, because the e-Golf never had the ESC/ASR button. But these buttons are can be swapped, so I ordered two versions and swapped the middle button. This will work, because the start-stop has the LEDs installed, so it will light up when pressed.

Removing the buttons is easy. Use a plastic spudger on both sides of the button to unclip the button from the frame, then pull the button out. The buttons I used have part numbers 5GE 927 137 A (e-Golf) and 5G1 927 137 P (Golf).

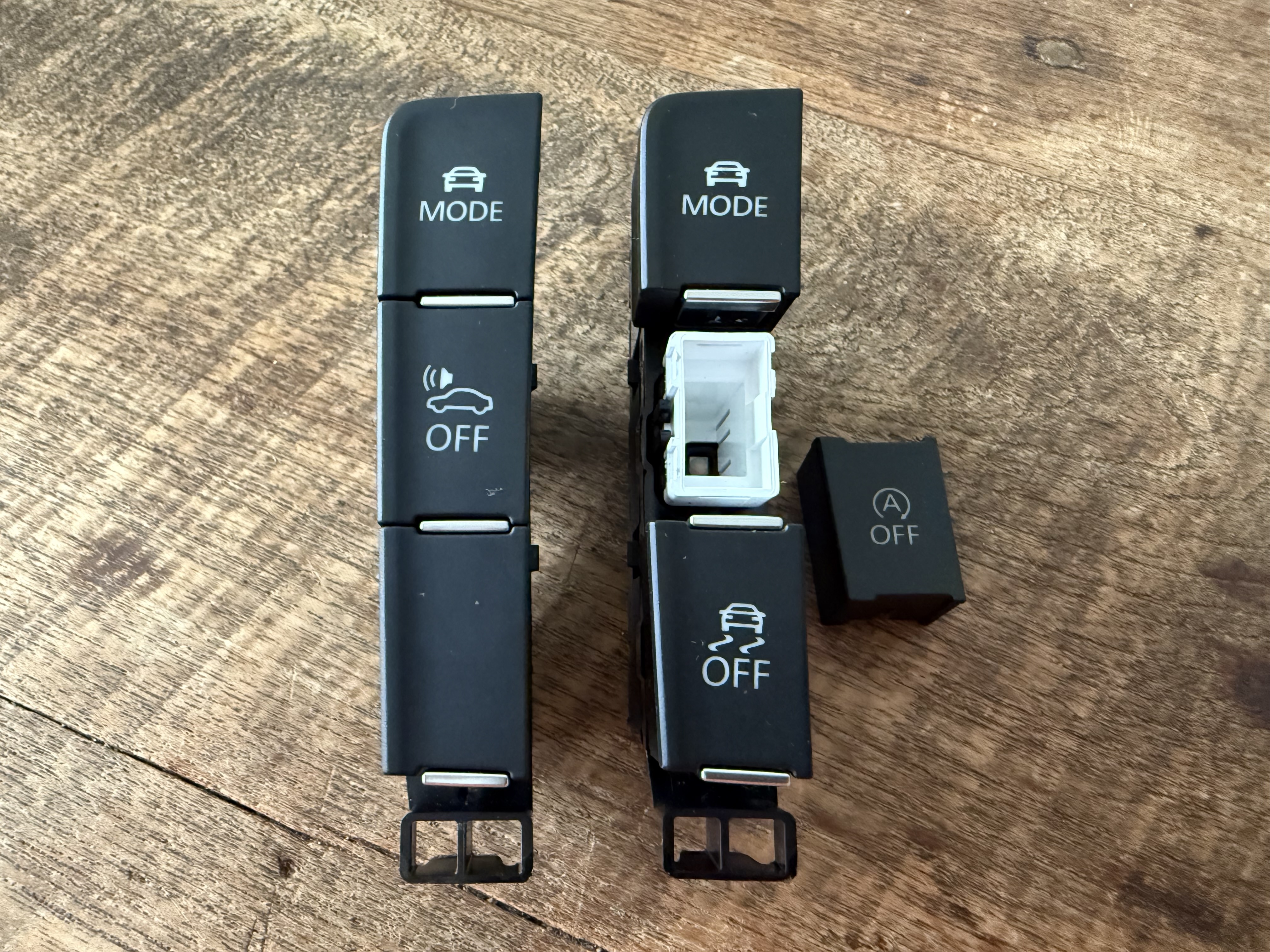

The buttons before the swap.
The buttons before the swap.
The buttons after the swap.
The buttons after the swap.

We’ll have to see if the new buttons will actually work. Before I can do that, I need to finalize the wiring and install the buttons.
